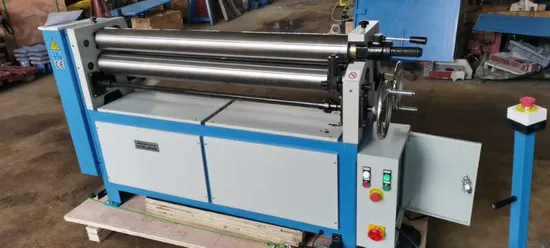

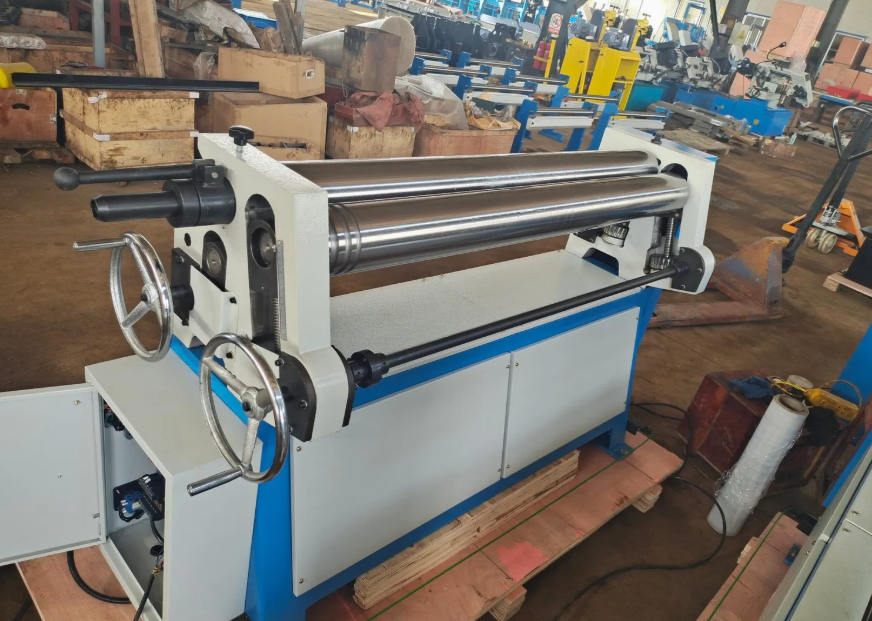

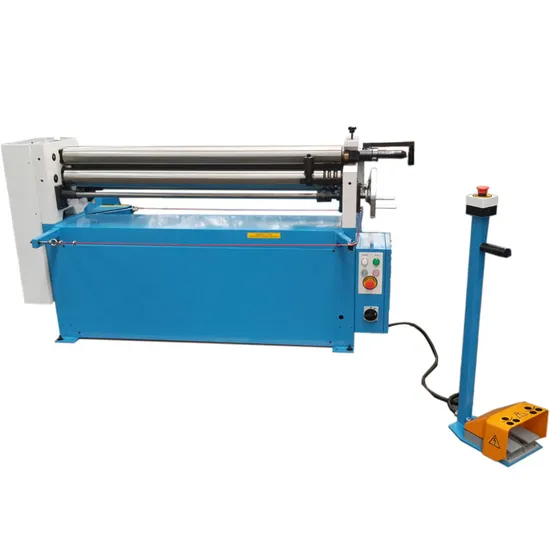

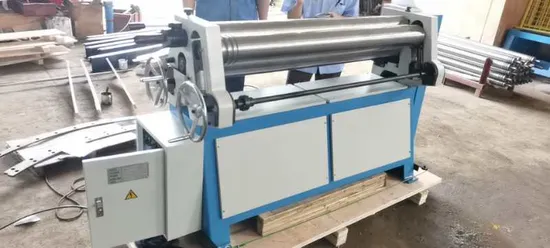

High-efficiency asymmetrical 3-roll electric plate rolling machine engineered for precise metal bending and conical shaping applications.
Features an asymmetrical 3-roll design with high-strength steel rollers for superior durability and performance.
Equipped with a fixed top roller and adjustable lower and rear rollers for versatile bending operations.
Includes standard series wire core grooves to accommodate a variety of material profiles.
Designed with a top roll swing-out mechanism via cam lock for easy removal of the finished workpiece.
Supplied with a conical bending feature, enhancing its capability for complex shaping tasks.
Powered by a robust 2.2 kW motor to handle a maximum rolling thickness of 4.5 mm with consistent speed.
Model: ESR-1300X4.5
Max. Rolling Thickness: 4.5 mm
Max. Rolling Width: 1300 mm
Diameter of Roller: 120 mm
Min. Rolling Diameter: 130 mm
Motor Power: 2.2 kW
